A power amplifier works by taking a weak, low-voltage audio signal and using an electrical power supply to significantly boost its amplitude. This process increases the signal's power enough to drive loudspeakers without altering the original sound quality, making it essential for both live performances and studio setups.
Sound systems rely on complex electrical processes to deliver clear, booming audio to the back of a room. If you have ever attended a concert or set up a high-fidelity sound system in your living room, you have experienced the heavy lifting performed by an audio amplifier. These devices act as the muscular core of any sound setup, transforming faint electronic whispers into massive acoustic waves.
Understanding the internal mechanics of these audio engines helps sound engineers and musicians make better equipment choices. A weak link in the audio chain can ruin a performance, but knowing how signals travel from the microphone to the speaker ensures you capture the best possible sound.
This comprehensive guide explains the inner workings of audio amplification. You will learn how signals move through the system, the difference between various amplifier classes, and what specifications matter most when sourcing equipment from a reliable china enping amplifier factory.
A professional amplifier serves one primary purpose: it increases the power of an audio signal. Audio signals generated by microphones, instruments, or media players are extremely weak. These signals typically measure only a few thousandths of a volt. If you connect a loudspeaker directly to these sources, you will hear absolutely nothing.
The amplifier captures this tiny electrical current and acts as a multiplier. By pulling electrical energy from a wall outlet or power supply, the amplifier creates an exact replica of the original audio wave, but at a massively increased voltage and current. This enlarged signal now possesses the necessary electrical force to physically move the heavy magnetic cones inside a loudspeaker, producing the sound you hear.
The journey of an audio signal through power amplifiers involves three distinct stages. Each stage plays a critical role in preserving sound quality while building up the necessary electrical force.

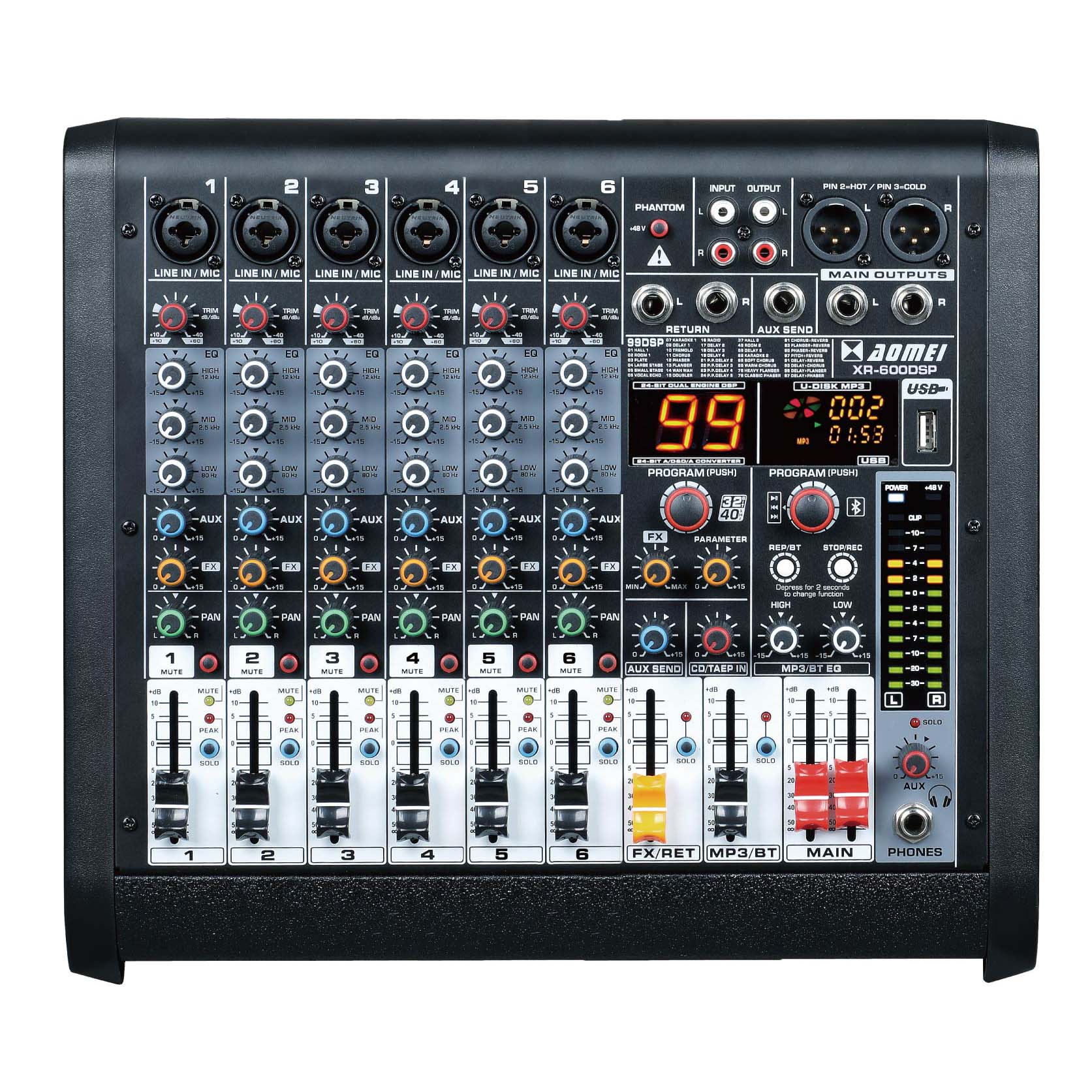

Before the signal reaches the amplifier, it usually passes through a mixing console. A high-quality mixer professional mixer combines multiple audio sources, adjusts their equalization, and sends a cohesive line-level signal to the amplifier. Products from a reputable China mixer professional mixer manufacturer ensure that this preliminary signal remains clean and free of distortion.
Once the line-level signal enters the Professional power AMPLIFIER, the internal circuitry boosts the signal's voltage. Transistors act as controllable valves. The small incoming audio signal controls these "valves," dictating exactly how much electrical current from the power supply is allowed to flow through.
The final stage focuses on increasing the current. Loudspeakers present a heavy electrical load (measured in ohms). The amplifier must deliver enough raw electrical current to overcome this resistance. Modern Class D units efficiently handle this by rapidly switching the power supply on and off, delivering massive current to the speakers with minimal heat loss.
Amplifiers are categorized by "classes" based on their internal circuitry and how they handle the electrical current. Choose the right class if energy efficiency and heat management matter more than slight theoretical gains in analog warmth.
According to [AOMEI Audio, 2024], modern professional environments heavily favor Class D architecture due to its superior efficiency and lighter weight.
Class A: Transistors remain fully on all the time. This provides excellent sound quality but generates excessive heat and wastes a massive amount of energy.
Class B: Uses two transistors that take turns amplifying the positive and negative halves of the audio wave. This runs cooler but can introduce crossover distortion.
Class AB: A hybrid design that combines the sound quality of Class A with the efficiency of Class B. This remains popular for a standard home audio power amplifier.
Class D: Uses rapid switching technology (pulse-width modulation) to achieve over 90% efficiency. These are lightweight, run cool, and offer massive power outputs.
To illustrate how Class D architecture performs in the real world, here is a comparison of two popular models manufactured by a leading enping power amplifier factory.
Specification | PM8x4-D | PM15DSP-D |
|---|---|---|
Output Power (8Ω) | 800W x 2 | 800W x 2 (Up to 1500W x 2 on D3) |
Output Power (4Ω) | 1300W x 2 | 1300W x 2 (Up to 2580W x 2 on D3) |
Output Circuitry | Class D | Class D |
Frequency Response | 20Hz - 20KHz | 20Hz - 20KHz |
Net Weight | 15.5 Kg | 12 Kg |
Best Use Case | Medium venues | Large venues & DSP tuning |
Selecting the correct unit depends entirely on your specific audio environment. A home audio setup requires vastly different specifications than a massive outdoor concert system.
First, match the amplifier's power rating to your speakers. Your amplifier should ideally deliver 1.5 to 2 times the continuous power rating of your loudspeaker to ensure adequate headroom and prevent clipping.
Second, consider the weight and thermal management. If your audio rig travels frequently, Class D amplifiers save back-breaking labor. Products sourced directly from a dedicated china enping amplifier factory often feature advanced cooling and low weights. For example, the PM15DSP-D weighs only 12Kg while delivering immense power and offering comprehensive protection against overheating and short circuits.
A solid understanding of amplifier mechanics empowers you to build superior sound systems. By matching the right mixer with a highly efficient Class D amplifier, you guarantee clean, powerful audio for any audience.
Evaluate your current speaker inventory, determine your necessary wattage, and reach out to a trusted manufacturer to upgrade your audio infrastructure today.
A preamplifier takes extremely weak signals (like those from a microphone) and boosts them to a standard "line level." A power amplifier takes that line-level signal and boosts the current significantly to drive heavy loudspeakers.
Yes. Modern Class D amplifiers offer exceptional sound quality alongside incredible efficiency. They run cooler, weigh significantly less than traditional Class AB amplifiers, and provide massive power outputs ideal for touring bands and large venues.
Look at your speaker's continuous (RMS) power rating and its impedance (ohms). Choose an amplifier that can deliver roughly 1.5 to 2 times that continuous power rating at the speaker's specified impedance level. This prevents the amplifier from straining and protects the speakers from distorted signals.
Enping, China is a globally recognized manufacturing hub for professional audio equipment. Sourcing directly from a China professional amplifier manufacturer provides access to strict quality control, advanced Class D technology, and highly competitive pricing for bulk or custom orders.
