A stereo power amplifier drives two channels (left and right) for music and general audio playback, while a speaker power amplifier is a broader term covering amplifiers built for sound reinforcement in venues like clubs, churches, and outdoor events. Class D models, such as AOMEI's PX3-D series, favor efficiency and compact size, while Class H amplifiers like the PA1500H series deliver higher continuous power for large speaker arrays.
Choosing the right amplifier can make or break your sound system. Too little power, and your speakers sound thin and strained. Too much, and you're wasting money on headroom you'll never use. Whether you're outfitting a live venue, a house of worship, or a touring rig, understanding how a stereo power amplifier differs from other speaker power amplifier types will save you from costly guesswork.
This guide breaks down what each amplifier type does best, compares real specifications from AOMEI's PX3-D and PA1500H series, and answers the questions most buyers ask before placing an order.
A stereo power amplifier takes a low-voltage audio signal and boosts it enough to drive passive speakers across two independent channels. Most stereo amplifiers also support bridge mono mode, which combines both channels into a single, more powerful output for driving a subwoofer or a single large speaker.

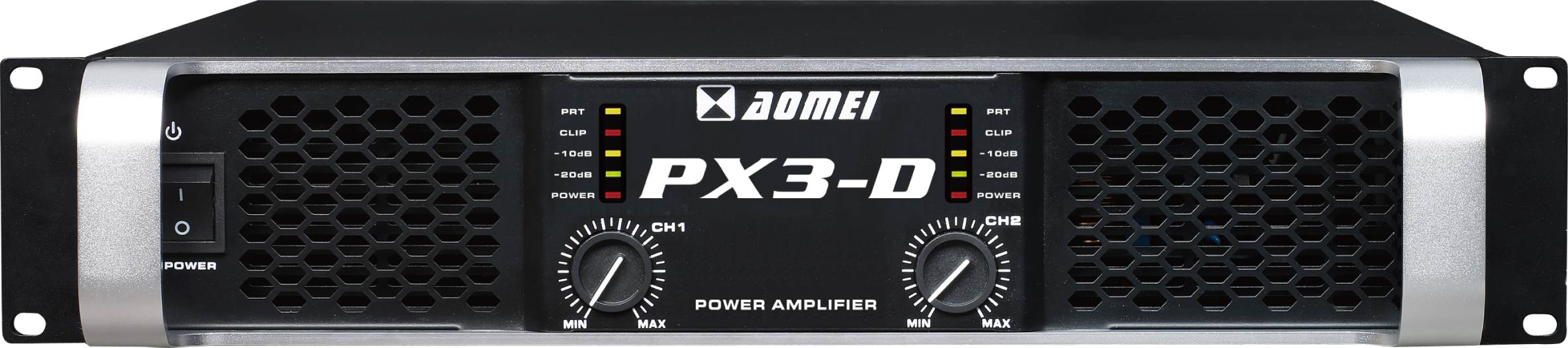

AOMEI's PX3-D series is a clear example of this design philosophy. Built with Class D output circuitry, these amplifiers are engineered for efficiency without sacrificing output. The PX3-D, for instance, delivers 300W x 2 at 8Ω, scaling up to 510W x 2 at 4Ω. In bridge mono mode, that same unit jumps to 1,650W at 4Ω.
"Speaker power amplifier" is a wider category that includes stereo amplifiers but also extends to higher-output units designed for sound reinforcement at scale. These are the amplifiers you'll find racked in concert venues, large houses of worship, and touring sound systems where multiple speaker cabinets need consistent, high-current power.
AOMEI's PA1500H series falls into this category. These amplifiers use Class H output circuitry, which improves power efficiency at high output levels compared to traditional Class AB designs. The PA1500H delivers 1,500W x 2 at 8Ω and an impressive 4,300W x 2 at 2Ω, with bridge mono mode reaching 7,500W at 4Ω. That's the kind of headroom needed to drive large-format line arrays or subwoofer banks without strain.
The output circuitry is the single biggest factor separating these two series. Class D amplifiers, like the PX3-D line, switch power on and off rapidly to generate the output waveform. This approach runs cooler, weighs less, and uses less energy, which makes it a strong choice when portability and efficiency matter more than maximum power.
Class H amplifiers, like the PA1500H line, dynamically adjust the supply rail voltage to match the signal's demands. This gives them more usable headroom at high volumes, which is why they're favored for large-scale sound reinforcement rather than compact or mobile setups.
Specification | PX3-D (Class D) | PA1500H (Class H) |
|---|---|---|
Output Power (8Ω) | 300W x 2 | 1,500W x 2 |
Output Power (4Ω) | 510W x 2 | 2,700W x 2 |
Output Power (2Ω) | Not rated | 4,300W x 2 |
Bridge Mono Mode (8Ω) | 1,000W | 4,550W |
Bridge Mono Mode (4Ω) | 1,650W | 7,500W |
Frequency Response | 20Hz–20KHz | 20Hz–20KHz |
THD (20Hz–20KHz, 8Ω) | 0.05% | 0.05% |
Signal to Noise | 103dB | 103dB |
Dimensions (W x D x H) | 483 x 453 x 89mm (2U) | 650 x 580 x 220mm (3U) |
Net Weight | 10.5Kg | 42.5Kg |
As the table shows, both series share the same low distortion (0.05% THD) and signal-to-noise ratio (103dB), so sound clarity isn't the deciding factor. The real trade-off comes down to raw output power versus size and weight.
Choose a Class D stereo power amplifier, such as the PX3-D series, if portability, lower energy consumption, and rack space are priorities. These units suit mobile DJs, small to mid-sized venues, and installers who need to fit more amplification into a smaller footprint. The series also scales up through the PX4-D, PX6-D, PX8-D, and PX10-D models, so you can match output power to room size without changing platforms.
Choose a Class H speaker power amplifier, like the PA1500H series, if your setup involves large speaker arrays, subwoofers, or outdoor events where sustained high output is non-negotiable. This series also scales from the PA800H up through the PA1500H, giving integrators room to grow without switching amplifier families.
Both the PX3-D and PA1500H series include over-heat, short circuit, DC safeguard, over-loading, and boot-strap short test protection, along with automatic high/low cooling control. These safeguards matter more as output power increases, since a failure at 4,300W x 2 can be far more costly than one at 300W x 2. When comparing amplifiers from any manufacturer, confirm these protections are built in rather than optional.
The right amplifier depends on what you're driving and where. A stereo power amplifier built on Class D technology gets the job done efficiently for small to mid-size setups, while a Class H speaker power amplifier earns its keep in demanding, high-output environments. Matching your speakers' impedance and power handling to the amplifier's rated output, rather than just chasing the highest wattage number, is what separates a system that performs reliably from one that fails under pressure.
If you're specifying equipment for an upcoming installation, compare the full specification sheet, not just the headline wattage, before making a final decision.
What's the difference between a stereo power amplifier and a mono amplifier?
A stereo power amplifier runs two independent channels, typically left and right, while a mono amplifier outputs a single channel, often used for subwoofers that don't need stereo separation.
Can a Class D amplifier handle large venues?
Yes, when scaled appropriately. Higher-output Class D models exist for larger applications, but Class H amplifiers generally offer more headroom for the largest speaker arrays and sustained high-volume use.
Does lower impedance always mean more power?
Generally yes. As impedance drops from 8Ω to 4Ω to 2Ω, an amplifier can typically deliver more current and therefore more power, provided it's rated for that load. Not all amplifiers, including the PX3-D series, are rated for 2Ω operation.
How important is THD when choosing an amplifier?
Total Harmonic Distortion (THD) indicates how accurately the amplifier reproduces the original signal. Both the PX3-D and PA1500H series rate at 0.05% THD, which is considered very low and suitable for professional audio applications.
Are bridge mono modes worth considering?
Bridge mono mode combines both channels into one high-power output, which is useful for driving a single subwoofer or large speaker that needs more power than a single channel can provide.
